A small angle stop is an L-shaped valve installed where the supply line reaches a fixture. These valves are commonly located beneath sinks, behind toilets, and near appliance hookups. When a Plumbing Angle Stop works properly, it allows one fixture to be shut off without interrupting water to the whole home. This makes repairs and replacements faster and less disruptive.
Angle Stop Valve
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Modern installations favor quarter-turn ball-style Angle Stop Valve designs. They are quicker to operate and commonly provide longer service life. If an angle stop corrodes, leaks, or becomes stiff, replacing it helps prevent water damage and simplifies future maintenance.
Key Takeaways
- Plumbing Angle Stops let you shut off water to one fixture without touching the house main.
- Angle Stops Plumbing are usually found beneath sinks, behind toilets, and near fixtures where quick access matters.
- Most Angle Stop Valve units are compact, often 3–6 inches tall, and redirect water at a right angle.
- Quarter-turn designs are now preferred for reliability and faster shutoff.
- Replace valves that leak, corrode, or become difficult to operate to avoid water damage.
Understanding An Angle Stop And Why It Matters
The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls water to a single fixture so repairs, upgrades, or replacements can happen without closing the whole-house main. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance manageable.
Definition And Simple Explanation
An angle stop is a 90-degree valve placed at the fixture supply. It comes in different designs, including Angle Stop Valves with multi-turn stems or quarter-turn ball internals. A Plumbing Angle Stop is designed to fit neatly in tight spots such as under-sink cabinets and behind toilets.
Where Home Angle Stops Are Usually Installed
Plumbing Angle Stops are most often installed below bathroom vanities and kitchen sinks. They are usually positioned near the rear of the cabinet where the water line comes through. Toilet angle stops are normally mounted on the wall behind or beside the toilet tank. Angle stops may also appear at appliance connections, including dishwashers, ice makers, washing machines, and some water-heater cold-supply lines.
Why Angle Stops Help Homeowners
One main benefit of an Angle Valve For Sink is isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This keeps small leaks from turning into major water damage and limits disruption during repairs.
Another advantage is convenience. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Periodic exercising of the valve keeps it operable. Replacing old multi-turn stops with quarter-turn Angle Stop Valve models can make emergency shutoff less stressful.
Difference Between Angle Stop And Angle Seat Valve
Residential angle stops are made for fixture-level potable water service. They are suited to sinks, toilets, and everyday household appliances. An industrial Angle Seat Valve is a different type of valve. It is built for higher-pressure, higher-temperature, or corrosive applications in steam, chemical, and HVAC systems. Angle seat valves use metal seats and pistons for durability in demanding environments, while an Angle Stop is a simple residential fixture shutoff.

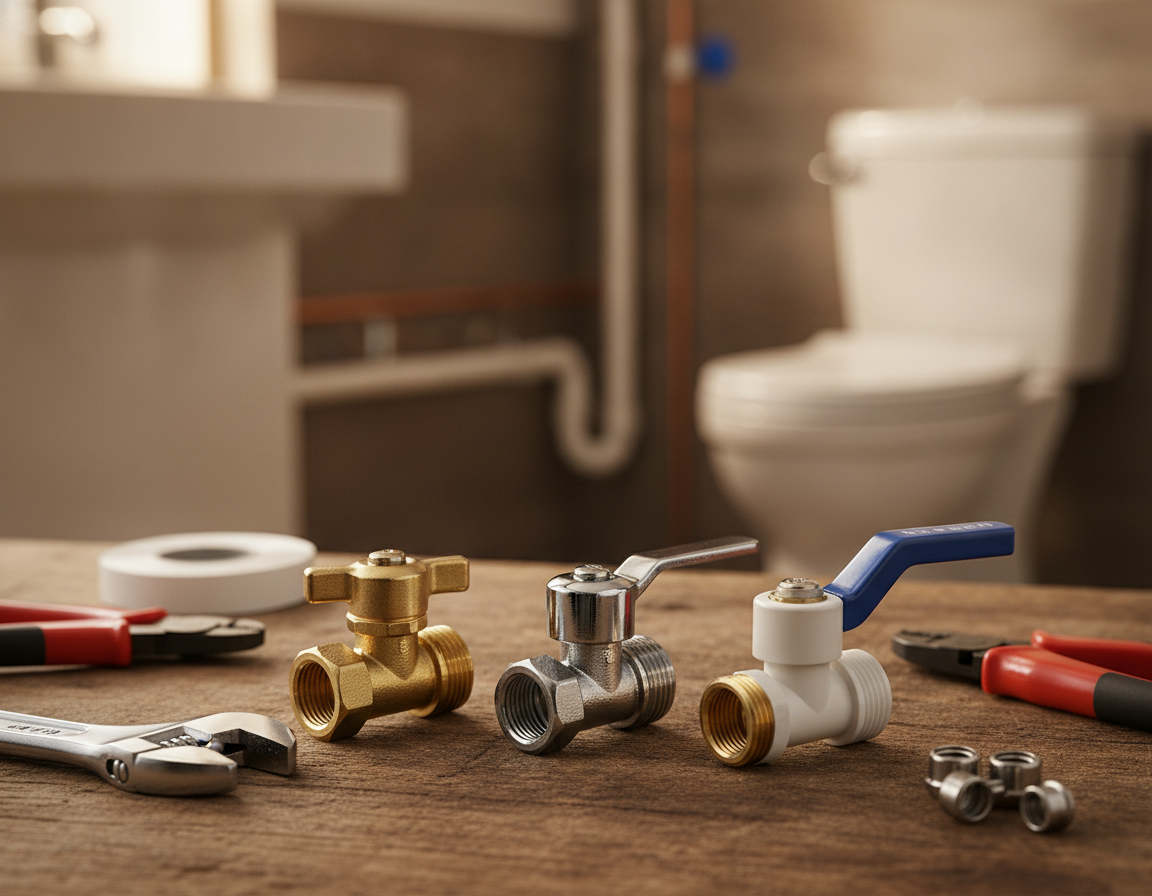

How To Choose From Different Types Of Angle Stops
Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. The following overview helps homeowners and plumbers choose Plumbing Angle Stops that are durable.
Angle Stop Materials
Brass is the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are best for humid basements, coastal areas, and outdoor hose bibs to prevent rust. Plastic-bodied stops are cheaper, but they are typically less durable and can degrade in hot-water service. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.
Valve Operation Styles
Quarter-turn valves use a ball or disc and open with a 90-degree turn. They provide quick shutoff, low torque, and resistance to mineral buildup, making them a top choice for frequent use and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They can offer finer flow control, but older units are more likely to stick.
Common Connection Styles
Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They install without heat and are popular in remodels. Sweat Angle Stop joints are soldered for a slim, permanent seal and work well in tight spaces where a torch is acceptable. FIP-threaded valves screw onto male adapters and require PTFE tape or pipe sealant. Push-Fit Angle Stop models, including SharkBite-style options, can slide onto copper, CPVC, or PEX without special tools. They are useful for DIY work or cramped areas, while Compression Angle Stop options remain common where future rework is expected.
Useful Special Features
Some Angle Stop Valve models include a Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. Lead-Free Angle Stop markings on the body confirm potable-water compliance. Choose a valve that matches the pipe material, connection type, and service conditions to reduce premature failure.
Plumbing Angle Stops Guide
Plumbing angle stops manage fixture water flow using a compact right-angle layout. The choice of size and style affects both function and code compliance. The sections below explain valve markings, typical home locations, lead-free requirements, and modern installation trends.
Common Sizes And Reading Valve Markings
In most homes, the inlet side is commonly 1/2 inch nominal, while the outlet to the fixture is often 3/8 inch compression. Valve markings often appear as 1/2 x 3/8, 1/2” MIP x 3/8” OD, or similar size combinations. This identifies the inlet and outlet sizes. Some labels specify 3/8 COMP for compression outlets. Before buying, confirm that the inlet matches your supply piping, whether it is 1/2 FIP, 1/2 MIP, 1/2 sweat, or another style.
Where Angle Stops Are Placed
Angle stops are usually installed under kitchen sinks, beneath bathroom vanities, and behind toilets. They are also used for appliances such as water heaters, dishwashers, ice makers, and washing machines. Under-sink valves are commonly located at the rear of cabinets, while toilet stops are generally visible near the wall behind the tank.
Potable Water Code And Safety Notes
In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Choose a Lead-Free Angle Stop that has clear markings, documentation, or certification details. Contractors must follow local codes and provide test certifications and warranties to support compliance.
Recommended Angle Stop Standards
Modern Angle Stops commonly feature quarter-turn ball-style operation. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Many plumbers standardize on brass 1/2 x 3/8 angle stops for sinks and toilets because they simplify stocking, replacement, and maintenance. New installations increasingly include models with arrestors, lead-free markings, and other potable-water protection features.
Practical Checklist For Selection
- Confirm Valve Markings for inlet type and outlet size before purchase.
- Match the Angle Valve For Sink or toilet to supply hose fittings and tank threads.
- Use a Lead-Free Angle Stop whenever the valve is installed on a potable-water line.
- For many homes, standardizing on Quarter-Turn Angle Stop 1/2 x 3/8 valves can simplify maintenance and improve reliability.
Installing And Replacing Angle Stops: Tools, Steps, And Best Practices
When tackling a plumbing angle stop, it is important to know when to shut the main water supply. The main usually needs to be closed only when the existing stop is unable to close fully. For most replacements, you can isolate the line using the valve under the sink. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.
Before starting, gather all needed tools and supplies. Common tools include an adjustable wrench, a backup wrench, a tube cutter, and a deburring tool. Emery cloth for copper, PTFE tape for threaded joints, a marker, and a flashlight are also useful. For push-fit installs, bring the manufacturer’s push-fit angle stop, a PEX stiffener, and spare ferrules and nuts for compression work. Penetrating oil and a heat shield help with stubborn fittings and sweat connections.
Tool Checklist:
- Adjustable wrench plus backup wrench
- Tube cutter and deburring tool
- Thread tape and insertion-depth marker
- Push-fit stop with PEX stiffener
- Extra ferrules, nuts, oil, towels, and cleanup supplies
Each connection type requires its own installation method. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Hand-tighten the nut and finish with a 1/4–1/2 turn using a wrench. Use a backup wrench on the valve body or outlet so the stub-out does not twist.
For push-fit installation, make a square pipe cut and deburr the end thoroughly. Mark the insertion depth and push the valve straight on to the depth mark. Tug lightly to confirm the fitting locked. Push-fit angle stop fittings can work with copper, CPVC, and PEX, but PEX may require a stiffener depending on the product.
Sweat angle stop connections need careful preparation and heat control. Remove or protect seals, clean and flux the pipe and valve cup, heat evenly, and apply solder properly. After cooling, wipe the joint to remove residue. A heat shield or removal of heat-sensitive parts helps prevent damage during soldering.
For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.
Test the work by turning water on slowly and watching the joints. Open the angle stop and fixture in stages rather than all at once. Use a dry towel or tissue to reveal small weeps around fittings. Operate the valve, let pressure stabilize, and inspect again for slow leaks.
Be aware of common mistakes that can lead to failures. Over-tightened compression nuts may deform ferrules and create leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Do not solder near heat-sensitive seals unless they are protected or removed. Avoid twisting push-fit valves during insertion and always follow the manufacturer’s insertion-depth marks.
Common trouble points include a frozen or leaky stop that forces a main shutoff, misapplied PTFE tape that causes threaded leaks, and tightening outlet nuts without a backup wrench. Keeping spare parts available and following proper tightening guidance helps reduce repeat repairs.
Common Problems And Quick Repairs For Angle Stops
Small leaks, stuck handles, and stiff valves are common angle stop problems for homeowners. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.
Leaking At The Stem Or Handle
In older multi-turn valves, seepage at the stem usually starts with a loose packing nut. A careful 1/8-turn tightening with an adjustable wrench may stop the leak. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.
Hard-To-Turn Angle Stops
Mineral Buildup, corrosion, and rust commonly cause stuck angle stops. Applying a penetrating product such as WD-40 for about ten minutes may help. A gentle back-and-forth motion may help break the handle free. If it remains stuck or the handle is brittle, replace the stop to avoid a flood.
Weeping Compression Joints
A persistent leak from a compression joint usually indicates a misaligned ferrule or damaged pipe end. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is worn, cut back the pipe, install a new ferrule, and tighten carefully to prevent more leaks.
When To Upgrade The Valve
If a home has repeated leaks, frozen handles, visible corrosion, or valves older than about ten years, modern angle stops are worth considering. A Quarter-Turn Upgrade to a ball-type stop improves shutoff speed, resists Mineral Buildup, and increases emergency reliability.
Fast Repair Checklist
- Tighten the packing nut slightly for stem drips.
- Use Penetrating Oil and gentle motion for stuck valves.
- Reseat the ferrule or cut back the pipe for compression leaks.
- Upgrade to quarter-turn stops when valves freeze or leak repeatedly.
Regularly exercising angle stops and checking for corrosion helps identify issues early. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.
Final Thoughts
The Plumbing Angle Stops Guide highlights the importance of these small but critical components. They let homeowners shut off one fixture without disrupting water to the whole house. Selecting the proper material, valve operation, and connection style makes future repair work simpler. It also reduces the risk of water damage during upgrades.
For best performance, the industry often recommends lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors may be added where quick-closing fixtures or water hammer create noise and stress. Homeowners should test valves regularly and replace faulty Plumbing Angle Stops. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.
When installation feels uncertain, hiring a licensed plumber is the safer option. A plumber can ensure code compliance and provide warranty-backed work. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
